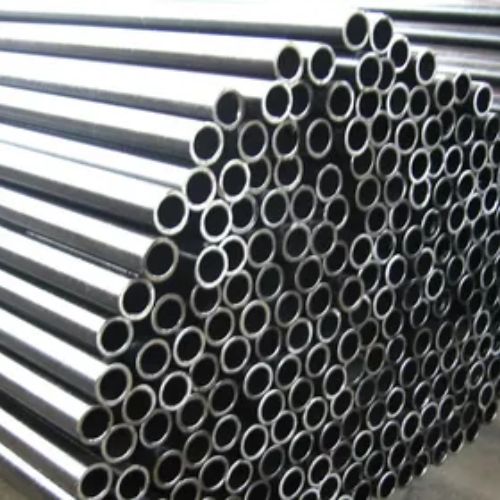

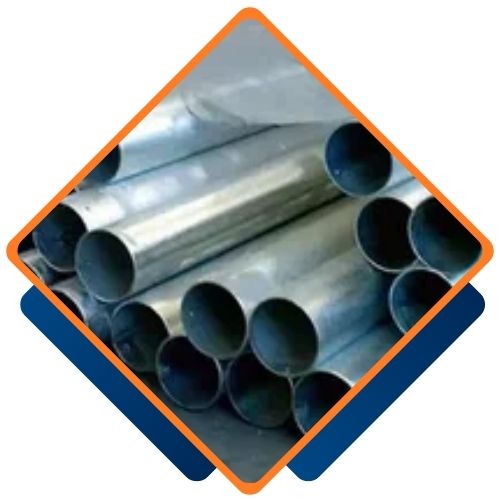

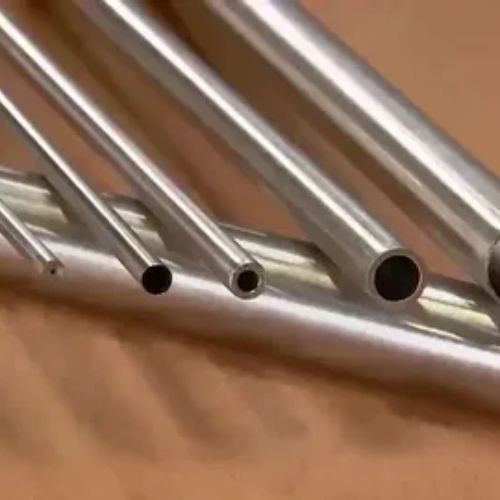

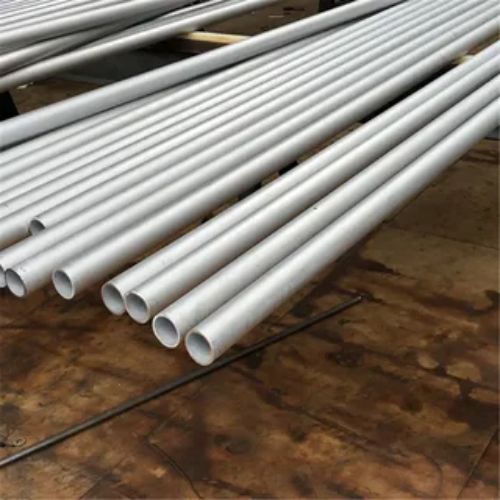

Irfan Pipes and Tubes, located in Istanbul, Turkey, has established itself as a reliable manufacturer and supplier of high-performance Titanium Grade 5 Tubing (Ti-6Al-4V), catering to advanced engineering sectors around the globe. This tubing is celebrated for its remarkable strength-to-weight ratio, along with its resistance to corrosion and heat, making it perfect for challenging environments. The company employs precision manufacturing techniques and strict quality control measures to ensure their tubing meets international standards like ASTM B338 and ASME SB-338. With a commitment to innovation and customer satisfaction, Irfan Pipes and Tubes supplies Titanium Grade 5 tubing to various industries, including aerospace, marine, defense, motorsports, and medical technologies.

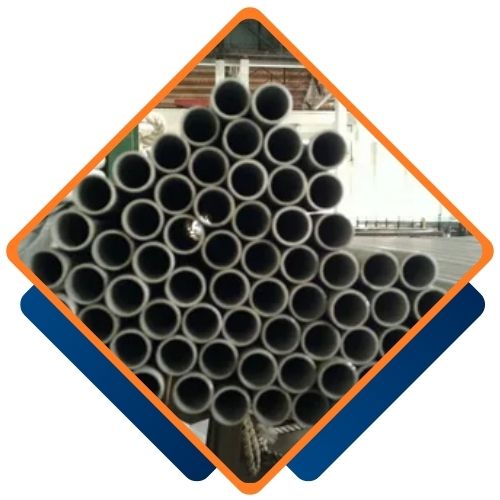

Titanium Grade 5 Tubing (UNS R56400) from Irfan Pipes and Tubes consists of roughly 90% titanium, 6% aluminum, and 4% vanadium. This alpha-beta alloy is recognized for its impressive strength, resistance to corrosion, and good weldability. It boasts a tensile strength ranging from 895 to 950 MPa and a yield strength of about 828 MPa, with an elongation of approximately 10 to 14%. Titanium Grade 5 retains excellent mechanical properties even at elevated temperatures and is significantly stronger than commercially pure titanium. Its lightweight nature, combined with high fatigue and creep resistance, makes it perfect for critical, load-bearing applications.

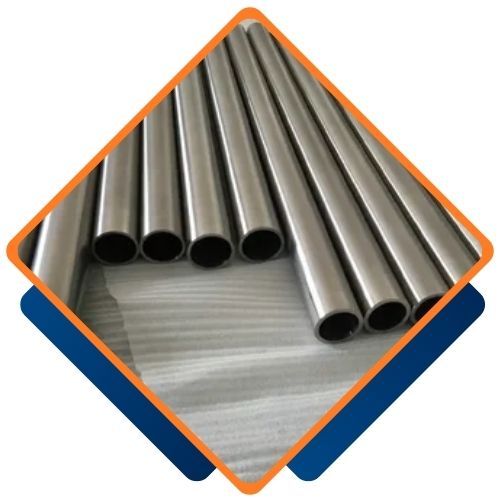

Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes

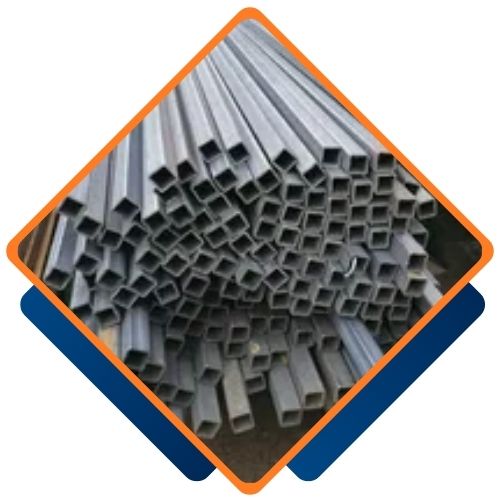

Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Al | Fe | O | Ti | V |
|---|---|---|---|---|
| max | max | max | max | max |
| 6 | 0.25 | 0.2 | 90 | 4 |
| Hardness, Brinell | 334 | 334 | Estimated from Rockwell C. |
|---|---|---|---|
| Hardness, Knoop | 363 | 363 | Estimated from Rockwell C. |
| Hardness, Rockwell C | 36 | 36 | |
| Hardness, Vickers | 349 | 349 | Estimated from Rockwell C. |
| Tensile Strength, Ultimate | 950 MPa | 138000 psi | |
| Tensile Strength, Yield | 880 MPa | 128000 psi | |
| Elongation at Break | 14 % | 14 % | |
| Reduction of Area | 36 % | 36 % | |
| Modulus of Elasticity | 113.8 GPa | 16500 ksi | |
| Compressive Yield Strength | 970 MPa | 141000 psi | |
| Notched Tensile Strength | 1450 MPa | 210000 psi | Kt (stress concentration factor) = 6.7 |
| Ultimate Bearing Strength | 1860 MPa | 270000 psi | e/D = 2 |
| Bearing Yield Strength | 1480 MPa | 215000 psi | e/D = 2 |
| Poisson’s Ratio | 0.342 | 0.342 | |
| Charpy Impact | 17 J | 12.5 ft-lb | V-notch |
| Fatigue Strength | 240 MPa | 34800 psi | at 1E+7 cycles. Kt (stress concentration factor) = 3.3 |
| Fatigue Strength | 510 MPa | 74000 psi | Unnotched 10,000,000 Cycles |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Gr 5 Tubing from Irfan Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Irfan Pipes and Tubes, a leading supplier of Titanium Gr 5 Tubing in Istanbul, Turkey, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Irfan Pipes and Tubes, we provide custom sizes of Titanium Gr 5 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Irfan Pipes and Tubes’ Titanium Grade 5 Tubing is extensively utilized in high-performance and high-stress applications. In the aerospace sector, it plays a crucial role in hydraulic systems, fuel lines, and structural components of airframes. In marine settings, its corrosion resistance is highly valued for saltwater applications, such as propulsion shafts and exhaust systems. The medical industry relies on it for surgical instruments and orthopedic implants due to its biocompatibility. Additionally, it finds widespread use in motorsports, defense systems, and chemical processing.
