Home > Stainless Steel > Stainless Steel Corrugated Tubing

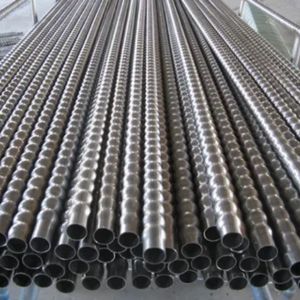

Irfan Pipes and Tubes, based in Istanbul, Turkey, has built a solid reputation as a manufacturer and supplier of top-notch stainless steel products, with a particular focus on Stainless Steel Corrugated Tubing. This tubing is crafted to offer flexibility, durability, and resistance to corrosion, making it perfect for applications that need to accommodate movement, absorb vibrations, or handle thermal expansion. Committed to precision engineering and adhering to international standards, Irfan Pipes and Tubes caters to a variety of industries, including gas distribution, HVAC, chemical processing, and industrial automation. Their stainless steel corrugated tubing is produced using cutting-edge techniques to guarantee outstanding mechanical performance, a long lifespan, and safe operation even in challenging environments.
Stainless Steel Corrugated Tubing is generally crafted from austenitic stainless steel grades like 304, 316L, or 321. These materials are composed of Chromium (18–20%), Nickel (8–14%), Molybdenum (up to 3% for 316L), and a Carbon content of less than 0.03%. The unique corrugated design provides flexibility while ensuring pressure resistance and durability. Its mechanical properties include tensile strength ranging from 485 to 620 MPa, yield strength between 170 and 310 MPa, and an elongation of at least 35%. This tubing is built to withstand fatigue, vibrations, and thermal cycling, making it an excellent choice for dynamic applications that involve movement or thermal expansion.
| Size Range | 6.35 mm To 50.8 mm OD |
| Length | As per Customer requirement, Maximum upto 22 Meter Long. |
| Thickness | 0.50 mm TO 6.0 mm |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Standard | ASTM A / ASME SA213 |
| Material | SS 304, SS 304L,SS 316,SS 316L |
| Form | Round, Square, Rectangular, Coil, U Tube, Pan Cake. |
| Shapes | Straight tube, Coil tubing |
| Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Finish | SS cottugated tubes and corrugated pipes can be supplied in mechanical polished with various grits like at 80, 120, 240, 320, 400, 600 grit and mirror polished. |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
| STAINLESS STEEL CORRUGATED TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Choosing Stainless Steel Corrugated Tubing from Irfan Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Irfan Pipes and Tubes, one of the largest suppliers of Stainless Steel Corrugated Tubing in Istanbul, Turkey, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Yes, we offer custom sizes for Stainless Steel Corrugated Tubing to meet your specific requirements. Our team at Irfan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@irfanpipes.com.
Stainless Steel Corrugated Tubing finds extensive use in industries that demand flexible, corrosion-resistant, and high-performance tubing. It’s commonly utilized in gas and water connections, heat exchangers, solar thermal systems, and HVAC units, where it helps absorb vibrations and thermal expansion. Its flexibility makes it particularly useful in tight or hard-to-reach spaces. In the chemical and petrochemical industries, it’s employed for transferring aggressive fluids, ensuring reliability and safety in various applications.
