Home > Stainless Steel >Stainless Steel 409 Pipes
Irfan Pipes and Tubes, located in Istanbul, Turkey, has built a solid reputation as a reliable manufacturer and supplier of Stainless Steel 409 Pipes. These pipes are known for their durability and cost-effectiveness, making them a go-to choice across various industries. With impressive heat resistance, good weldability, and moderate corrosion resistance, they shine in environments where strength and resistance to oxidation take precedence over top-tier corrosion resistance. Designed to perform consistently even in high-temperature settings, Stainless Steel 409 Pipes are ideal for applications in automotive, power generation, and general engineering. Irfan Pipes and Tubes is committed to ensuring that every product meets international quality standards, guaranteeing reliability and a long lifespan.
These pipes are made from ferritic stainless steel, featuring a high chromium content and low carbon levels, which enhance their oxidation resistance and weldability. The inclusion of titanium helps stabilize the structure, minimizing the risk of intergranular corrosion post-welding. They boast good tensile strength, toughness, and resistance to scaling, even at elevated temperatures. While they may not resist corrosion as well as austenitic stainless steels, they strike a practical balance between mechanical performance, heat resistance, and durability, making them a smart choice for many industrial uses.
| Item | Stainless Steel 409 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |

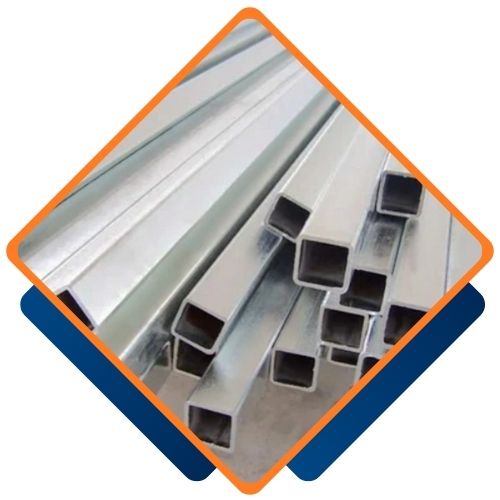

| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 409 | Min | – | – | – | – | – | 10.5 | – | – | – |
| max | 0.03 | 1.00 | 1.00 | 0.04 | 0.02 | 11.7 | – | 0.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 409 | 380 | 170 | 20 | 88 | 0.5t |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 409 Pipes from Irfan Pipes and Tubes ensures you get the high quality products you need. Our pipes are manufactured using advanced processes to ensure excellent durability and corrosion resistance. We adhere to strict industry standards with a focus on accuracy and quality. Our experienced team provides exceptional customer support, guiding you through your selection process. We offer competitive pricing and on-time delivery, ensuring you get your order when you need it. Trust Irfan to provide reliable and efficient pipeline solutions that will stand the test of time.
Irfan Pipes and Tubes, one of the largest suppliers of Stainless Steel 409 Pipes in Istanbul, Turkey, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR | JIS | BS |
|---|---|---|---|---|---|---|
| 409 | 1.4512 | S40900 | X2CrTi12 | Z3CT12 | SUH409 | 409S19 |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
409 |
7800 |
200 |
11.0 |
11.7 |
12.4 |
25.8 |
27.5 |
460 |
600 |
Yes, we offer custom sizes for Stainless Steel 409 Pipes to meet your specific requirements. Our team at Irfan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@irfanpipes.com.
Stainless Steel 409 Pipes find extensive application in industries that require strength and performance in moderately corrosive and high-temperature conditions. In the automotive field, they are frequently used in exhaust systems, catalytic converters, and mufflers, thanks to their heat resistance and cost-effectiveness. Power plants utilize them in boiler systems, heat exchangers, and other high-temperature equipment. The construction and engineering sectors depend on them for structural and fabrication needs. Additionally, these pipes are employed in food processing equipment, refinery components, and general manufacturing, providing versatile solutions across the board.
