Home > Stainless Steel >Stainless Steel 321 and 321H EFW Pipes
Irfan Pipes and Tubes, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of Stainless Steel 321 and 321H EFW Pipes, providing high-quality piping solutions across various industries. These pipes are celebrated for their remarkable resistance to high temperatures and intergranular corrosion, making them perfect for demanding applications in the chemical, petrochemical, and power generation sectors. Thanks to their advanced manufacturing techniques and rigorous quality control, Irfan Pipes and Tubes guarantees durability, reliability, and precision in every product they offer. Their expertise and dedication to excellence have established them as a trusted name in delivering premium-grade Stainless Steel 321 and 321H EFW Pipes around the globe.
Stainless Steel 321 and 321H EFW Pipes are titanium-stabilized austenitic stainless steels that contain chromium (17–19%), nickel (9–12%), and carbon, with 321H featuring a higher carbon content for improved creep strength. They boast excellent oxidation resistance up to 900°C and exceptional strength in high-temperature environments. Their mechanical properties include a minimum tensile strength of 515 MPa, a minimum yield strength of 205 MPa, and a minimum elongation of 40%. These pipes offer outstanding toughness, weldability, and durability, making them ideal for rigorous industrial operations that demand stability under thermal stress and in corrosive settings.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS |
| SS 321 | S32100 | 1.4541 | X6CrNiTi18-10 | SUS 321 |
| SS 321H | S32109 | 1.4878 | X12CrNiTi18-9 | SUS 321H |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 321 and 321H EFW Pipes from Irfan Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
We offer custom sizes for Stainless Steel 321 and 321H EFW Pipes to meet your specific needs. Our dedicated team at Irfan Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@irfanpipes.com.

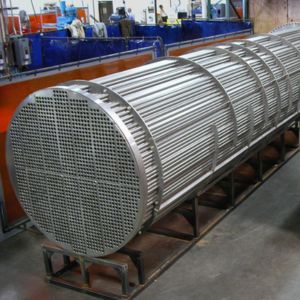

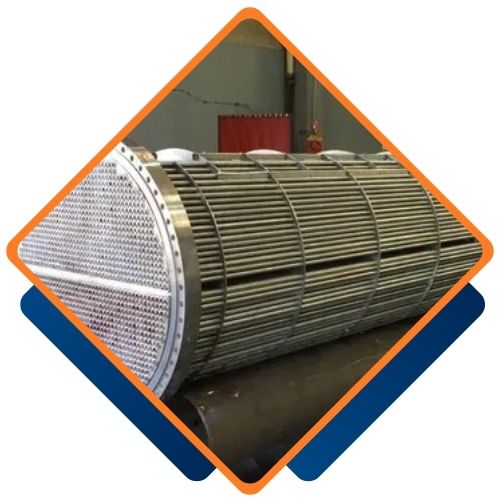

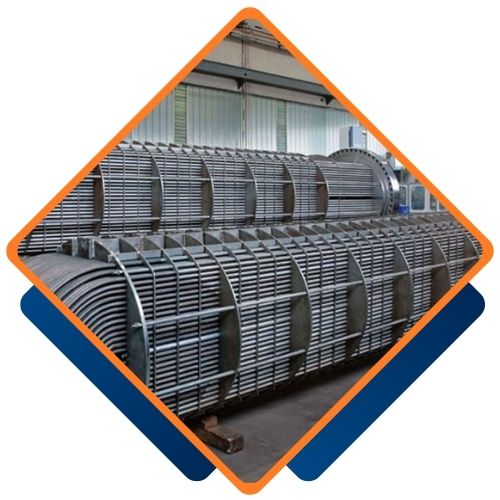

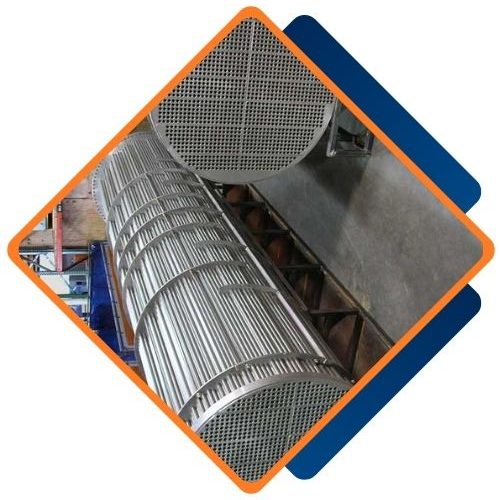

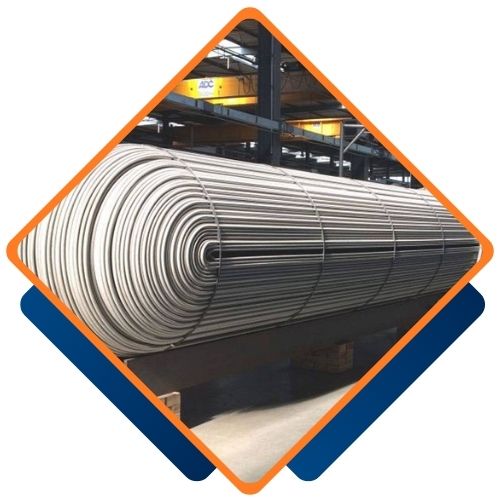

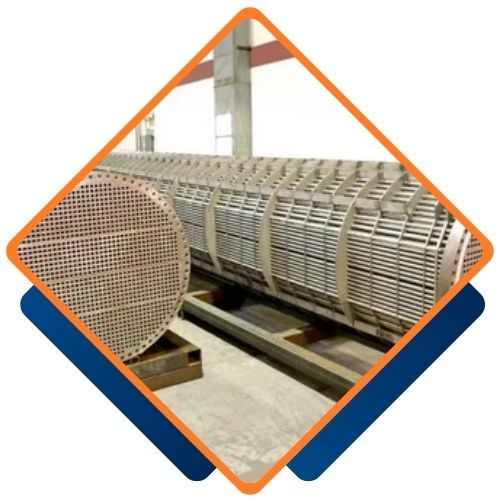

Stainless Steel 321 and 321H EFW Pipes find extensive use in industries that require high-temperature resistance and durability. They are perfect for heat exchangers, furnace components, exhaust manifolds, and thermal processing equipment. In the petrochemical, refinery, and chemical sectors, they are employed in piping systems that handle hot gases and corrosive fluids. Power plants utilize them in superheaters, reheaters, and boiler tubes due to their excellent creep and stress rupture strength. Their resistance to intergranular corrosion also makes them suitable for aerospace, marine, and automotive applications, ensuring a long service life, reliability, and top-notch performance.
