Home > Stainless Steel > Stainless steel 304H Welded Tubing
Irfan Pipes and Tubes, Istanbul, Turkey, is a renowned manufacturer and supplier of welded 304H stainless steel tubing, providing high-end solutions customized for structural and high-temperature applications. With utmost emphasis on material integrity, dimensional tolerance, and international quality standards, the company provides welded tubing for extreme applications. Stainless steel 304H is a high-carbon version of the popular 304 grade and is formulated to provide increased strength and heat resistance. Irfan Pipes and Tubes is offering 304H welded tubing to customers from various industries like power generation, petrochemicals, and heat exchangers with assured performance and reliability.
Stainless steel 304H welded tubing has about 18% chromium and 8% nickel, along with slightly higher carbon levels (0.04–0.10%) than type 304, enhancing high temperature strength and creep resistance. It has a tensile strength of about 585 MPa and a yield strength of 240 MPa, and it retains good ductility and toughness even at high temperatures. Welded form gives the structural strength and is appropriate for uses where seamless tubing is not needed. 304H has superior resistance to oxidation and scaling at temperatures up to 800°C, which makes it a good material for heat-exposed structural parts, and still provides good corrosion resistance in a wide range of environments.
| Specifications | : | ASTM A/ASME SA213/ A269/ A249 |
| Dimensions | : | ASTM, ASME and API |
| SS 304H Tubing Size | : | 1/8″ NB TO 30″ NB IN |
| Thickness | : | 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm. |
| Type | : | Seamless / ERW / Fabricated / Welded / LSAW Tubes |
| Schedule | : | SCH20, SCH30, SCH40, XS, SCH60, STD, SCH80, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | : | Single Random, Double Random & Cut Length. |
| Form | : | Round, Square, Rectangular, Hydraulic. |
| End | : | Plain End, Beveled End, Treaded |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 304H Welded Tubing from Irfan Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Irfan Pipes and Tubes is the largest supplier of Stainless Steel 304H Welded Tubing in Istanbul, Turkey. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304H | 1.4948 | S30409 |
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
304H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Yes, Irfan Pipes and Tubes offer large custom designs for Stainless Steel 304H Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@irfanpipes.com.

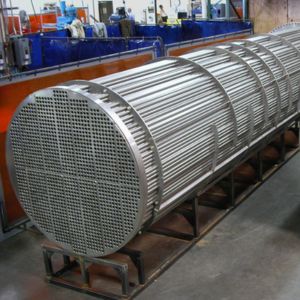

Stainless steel 304H welded tubing has general application across high-pressure and high-temperature applications in various different industries. It is used in boilers, heat exchangers, superheaters, and pressure vessels because of its resistance to elevated temperatures and retention of mechanical properties. In refinery processes and power plants, it ensures transport of fluid and gas in regions that are subject to thermal cycling and corrosion. The welded configuration is economical to produce and can be used in systems where seamless tubes are not a necessity. Its weldability and structural integrity at good levels make it a material of choice for process piping and thermal equipment.
