Irfan Pipes and Tubes, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of Monel Tubing, delivering high-quality solutions for various industrial and mechanical needs. Renowned for its precision engineering and cutting-edge manufacturing techniques, the company adheres strictly to international standards, producing tubing that boasts remarkable corrosion resistance, strength, and durability. Monel Tubing from Irfan Pipes and Tubes is particularly prized in industries that face tough conditions, such as those involving seawater, chemicals, and acidic environments. By using top-notch raw materials and maintaining rigorous quality control, the company guarantees dependable performance and a long service life in critical applications.
Monel Tubing is mainly made from a nickel-copper alloy, typically featuring about 67% nickel and 30% copper, along with trace amounts of iron, manganese, and silicon. This distinctive blend offers outstanding resistance to corrosion, pitting, and stress-corrosion cracking, even in challenging settings. The tubing showcases excellent mechanical properties, including high tensile and yield strength, toughness, and fatigue resistance. Thanks to its precise manufacturing, it ensures consistent dimensions and structural integrity, making it perfect for high-pressure, high-stress, and corrosive applications.
| End | Plain End, Beveled End, Treaded |
|---|---|
| Monel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Monel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Monel tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Specialize in | Monel Capillary Tube & Other Odd Size Monel Heat Exchanger & Condenser Tubes |
| Monel Tube Standards | ASTM B163, ASTM B730 /ASME SB163, ASME SB730 |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |

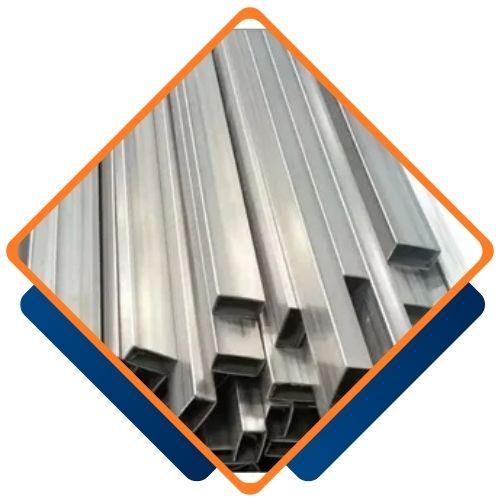

| Monel tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Monel Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Marking | All Monel Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| Monel Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Monel Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
| Alloy K500 | 0.25 max | 1.50 max | 0.50 max | 0.010max | 27.00 – 33.00max | 0.5 – 2 | 63.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44g\cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Tubing from Irfan Pipes and Tubes ensures exceptional corrosion resistance, high strength, reliable performance, and superior durability for optimal solutions in various industrial applications.
Irfan Pipes and Tubes, one of the largest suppliers of Monel Tubing in Istanbul, Turkey, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
Yes, we offer custom sizes for Monel Tubing to meet your specific requirements. Our team at Irfan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@irfanpipes.com.
You’ll find Monel Tubing widely used in the chemical processing, petrochemical, oil and gas, and marine sectors due to its robustness and ability to withstand harsh conditions. It’s commonly found in pumps, valves, heat exchangers, seawater handling systems, and structural components that are exposed to corrosive environments. Additionally, this tubing is utilized in aerospace, defense, and industrial machinery where mechanical strength and corrosion resistance are essential. With its blend of toughness, reliability, and long-lasting performance, Monel Tubing is the go-to choice for high-performance and critical applications.
