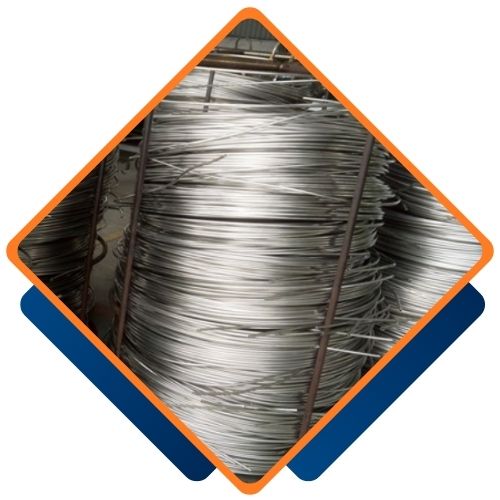

Irfan Pipes and Tubes, based in Istanbul, Turkey, stands out as a leading manufacturer and supplier of top-notch industrial tubing solutions. With a strong focus on precision engineering and ensuring customer satisfaction, the company provides a diverse array of products designed to meet international standards. One of its standout products is Monel Coil Tubing, celebrated for its remarkable corrosion resistance and mechanical strength. With years of industry experience and state-of-the-art production facilities, Irfan Pipes and Tubes has earned a reputation as a reliable partner for clients in various sectors, including oil & gas, marine, chemical processing, and aerospace.
Monel Coil Tubing is made up mainly of nickel (63-70%) and copper (20-29%), along with small amounts of iron, manganese, carbon, and silicon. This nickel-copper alloy is known for its outstanding resistance to corrosion, especially in seawater and chemical environments. It boasts high strength and toughness across a broad temperature range. Its mechanical properties include a tensile strength of about 550 MPa, yield strength of 240 MPa, and an elongation of up to 35%. These features make Monel Coil Tubing perfect for demanding applications that require durability, thermal stability, and resilience in harsh operating conditions.
| End | Plain End, Beveled End, Treaded |
|---|---|
| Monel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Monel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Monel tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Specialize in | Monel Capillary Tube & Other Odd Size Monel Heat Exchanger & Condenser Tubes |
| Monel Tube Standards | ASTM B163, ASTM B730 /ASME SB163, ASME SB730 |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Monel tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Monel Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Marking | All Monel Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| Monel Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Monel Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
| Alloy K500 | 0.25 max | 1.50 max | 0.50 max | 0.010max | 27.00 – 33.00max | 0.5 – 2 | 63.00 min | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44g\cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Coil Tubing from Irfan Pipes and Tubes ensures exceptional corrosion resistance, high strength, reliable performance, and superior durability for optimal solutions in various industrial applications.
Irfan Pipes and Tubes, one of the largest suppliers of Monel Coil Tubing in Istanbul, Turkey, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
Yes, we offer custom sizes for Monel Coil Tubing to meet your specific requirements. Our team at Irfan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@irfanpipes.com.

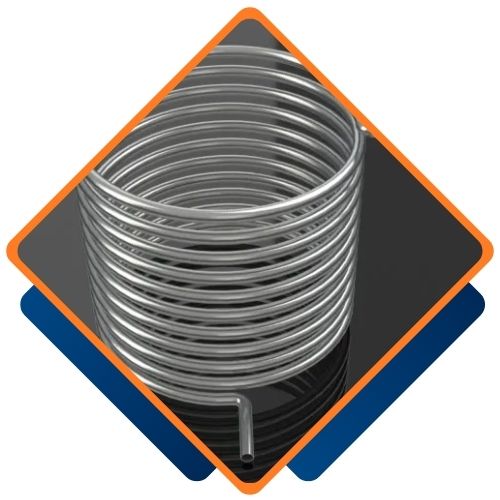

Monel Coil Tubing finds extensive use in industries where resistance to corrosive environments is essential. In the oil and gas industry, it’s utilized in control lines, chemical injection systems, and subsea applications due to its durability and ability to handle high pressure. In marine engineering, it’s employed for seawater piping, heat exchangers, and condensers. The chemical sector depends on it for managing acidic and caustic substances. In aerospace, it’s used in hydraulic lines and fuel systems that require a high strength-to-weight ratio. Its versatility and corrosion resistance also make it a great fit for various other applications.
