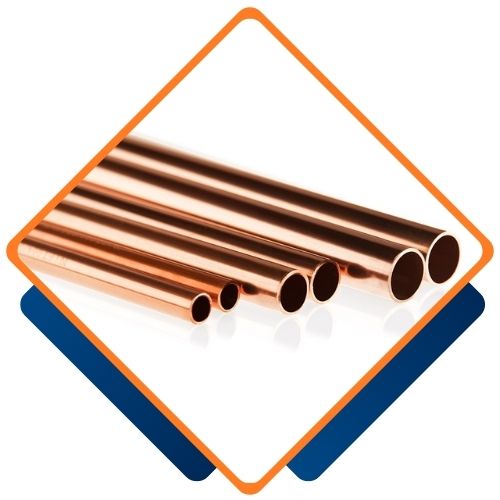

Irfan Pipes and Tubes, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of high-quality Copper Nickel Instrumentation Tubing. Known for their precision engineering and strict quality standards, this company provides tubing that meets a wide range of industrial needs. With decades of experience under their belt, Irfan Pipes and Tubes serves industries that require corrosion-resistant and durable solutions, ensuring reliable performance in critical applications. Their dedication to excellence, timely delivery, and a customer-focused approach has made them a trusted partner worldwide, offering Copper Nickel Instrumentation Tubing that blends superior craftsmanship with long-lasting efficiency, supporting various technical sectors.
Copper Nickel Instrumentation Tubing is mainly made from copper and nickel alloys, typically consisting of 70% copper and 30% nickel, which gives it remarkable resistance to corrosion, particularly in seawater. This tubing boasts high tensile strength, durability, and good thermal conductivity, all while remaining flexible for precise installations. Its mechanical properties include strong resistance to pitting and erosion, low thermal expansion, and stable performance across different temperatures and pressures. These features make it perfect for instrumentation systems that need reliable fluid and gas transport in challenging conditions, ensuring long-term operational integrity with minimal maintenance.
Dimensions : DIN, ASTM, ASME, BS and all International Standards
Grade : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Size Range : 1/8” to 2” and 2mm to 32mm tube diameter
Working Pressure : up to 6,000psi (based on severity of application)
Available Thread : NPT(ANSI B1.20.1), and ISO thread configurations (BSPT, BSPP)
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Instrumentation Tubing from Irfan Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Instrumentation Tubing from Irfan Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Instrumentation Tubing to meet your specific requirements. Our team at Irfan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@irfanpipes.com.

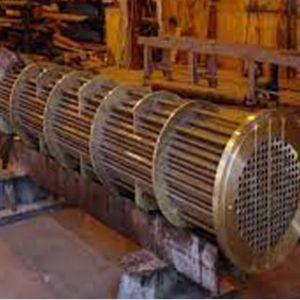

You’ll find Copper Nickel Instrumentation Tubing widely used in marine, chemical, and industrial applications where corrosion resistance is essential. It plays a crucial role in instrumentation lines, hydraulic systems, heat exchangers, and condensers, ensuring accurate measurement and control of fluids. Its seawater corrosion resistance makes it an excellent choice for shipbuilding, offshore platforms, and desalination plants. Moreover, it’s also utilized in power plants, chemical processing units, and petrochemical facilities for safe and dependable fluid conveyance.
