Carbon Steel IS 1239 Pipes Manufacturer, Supplier and Exporter in Istanbul, Turkey

Irfan Pipes and Tubes, based in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of **Carbon Steel IS 1239 Pipes**. They provide top-notch piping solutions tailored for industrial, construction, and infrastructure projects. These pipes are crafted in line with the Indian Standard IS 1239, ensuring they have a consistent wall thickness, impressive mechanical properties, and dependable performance even under pressure. You’ll find Carbon Steel IS 1239 Pipes commonly used in water supply systems, structural projects, oil and gas applications, and various engineering tasks. With a commitment to timely delivery and high-quality products, Irfan Pipes and Tubes stands out as a trustworthy choice for a wide range of industrial and commercial needs.

IS 1239 Steel Pipe Supplier in Istanbul, IS 1239 Carbon Steel Pipes Exporter in Bursa, IS 1239 Pipes Sizes in mm, IS 1239 CS Pipes Manufacturer in Ankara, Carbon Steel IS 1239 Pipes Price List in İzmir, CS IS 1239 Pipes Distributor in Bodrum, IS 1239 Carbon Steel Pipes in Antalya, IS 1239 CS Pipes Supplier in Ankara, CS IS 1239 Pipes Distributor in Turkey

The composition of Carbon Steel IS 1239 Pipes includes carbon, manganese, silicon, sulfur, and phosphorus, all mixed in controlled amounts to deliver excellent tensile and yield strength, toughness, and durability. These pipes are designed to withstand high impact, maintain dimensional stability, and perform reliably under pressure. Whether seamless or welded, they promise uniformity, robust joints, and long-lasting performance, making them ideal for industrial, structural, and fluid transport uses.

Carbon Steel IS 1239 Pipes Specification

Size range	15mm NB to 150mm NB
Dimensions	IS: 1239 (Pt I) – 2004 , BS – 1387 / 1985
Length	upto 7 M
Specifications	IS – 1239 (Part -1) 2004 / BS – 1387 / 1985
TC	MR0103, NACE MR0175, EN 10204 3.2, 10204 3.1

Carbon Steel IS 1239 Pipes Chemical Composition

Specification	Grade	S	Mn	C	P	Si	C.0E.0
–	–	–	–	–	–	–	PCM	IIW
IS:1239	–	0.0040	1.030	0.020	0.0040	–	–	–
–	Fe 330	0.0040	1.020	0.016	0.0040	–	–	–
–	Fe 410	0.0040	1.030	0.020	0.0040	–	–	0.045
–	Fe 450	0.0040	1.020	0.025	0.0040			0.045

Carbon Steel IS 1239 Pipes Mechanical Properties

IS 1239 Pipes Mechanical Properties				Impact
Yield Strength				Tensile Strength				% Elongation
Min		Max		Min		Max
								e (min)
MPa	PSI	MPa	PSI	MPa	PSI	MPa	PSI

–	–	–	–	–	–	–	–	20 ABOVE 25 mm
275	–	–	–	450	–		–	15
–	–	–	–	320	–		–	12 UPTO 25 mm NB
235	–	–	–	410	–		–	18
195	–	–	–	330	–		–	20
–	–	–	–	–	–	–	–	GL= 5.65	Area

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

IS 1239 CS Pipes Exporter in Turkey, Carbon Steel IS 1239 Pipes Price List in Istanbul, IS 1239 Pipes Supplier in Bursa, CS IS 1239 Pipes Exporter in Ankara, IS 1239 Pipes Exporter in Bodrum, IS 1239 Carbon Steel Pipes Size Chart, IS 1239 Pipes Price in Antalya, CS IS 1239 Pipes Weight Chart, IS 1239 Carbon Steel Pipes Thickness, IS 1239 CS Pipes Supplier in İzmir, IS 1239 Pipes Stockist in Bursa

Why Choose Carbon Steel IS 1239 Pipes from Irfan Pipes and Tubes?

Choosing Carbon Steel IS 1239 Pipes from Irfan Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

IS 1239 Carbon Steel Weight Thickness

Size	Other Diameter	Inner Diameter	Wall Thickness	Standard to XXHY	Weight	Section Modulus	Schedule	Gallon
3/4	1.05	0.824	0.113	STD	1.13	.0705	40	.0277
		0.742	0.154	XHY	1.48	.0853	80	.0225
		0.612	0.219		1.95	.1006	160	.0153
1/2	0.84	0.622	0.109	STD	0.85	.0407	40	.0158
		0.546	0.147	XHY	1.09	.0478	80	.0122
		0.464	0.188		1.31	.0528	160	.0088
1	1.315	1.049	0.133	STD	1.68	.1328	40	.0449
		0.957	0.179	XHY	2.17	.1606	80	.0374
		0.815	0.250		2.85	.1904	160	.0271
1 1/2	1.90	1.610	0.145	STD	2.72	.3262	40	.1058
		1.500	0.200	XHY	3.63	.4118	80	.0918
		1.338	0.281		4.86	.5079	160	.0730
1 1/4	1.66	1.380	0.140	STD	2.27	.2346	40	.0777
		1.278	0.191	XHY	3.00	.2913	80	.0666
		1.160	0.250		3.77	.3421	160	.0549
2	2.375	2.157	0.109		2.64	.4205	10	.1898
		2.067	0.154	STD	3.66	.5606	40	.1743
		1.939	0.218	XHY	5.03	.7309	80	.1534
		1.875	0.250		5.68	.8045		.1434
		1.813	0.281		6.29	.8666		.1344
		1.687	0.344		7.47	.9806	160	.1161
3	3.50	3.260	0.120		4.34	1.0411		.4336
		3.188	0.156		5.58	1.3122		.4147
		3.156	0.172		6.12	1.4265		.4064
		3.124	0.188		6.66	1.5342		.3984
		3.068	0.216	STD.	7.58	1.7241	40	.3840
		3.000	0.250		8.69	1.9372		.3672
		2.938	0.281		9.67	2.1207		.3521
		2.900	0.300	XHY	10.26	2.2253	80	.3431
		2.624	0.438		14.34	2.8774	160	.2811
2 1/2	2.875	2.635	0.120		3.53	.6870	10	.2833
		2.469	0.203	STD.	5.80	1.0640	40	.2487
		2.443	0.216		6.14	1.1169		.2435
		2.375	0.250		7.02	1.2468		.2301
		2.323	0.276	XHY	7.67	1.3386	80	.2202
		2.125	0.375		10.02	1.6371	160	.1842
3 1/2	4.0	3.760	0.120		4.98	1.3776	10	.5768
		3.548	0.226	STD.	9.12	2.3939	140	.5136
		3.500	0.250		10.02	2.6001		.4998
		3.438	0.281		11.17	2.8562		.4821
		3.364	0.318	XHY	12.52	3.1400	80	.4617
5	5.563	5.187	0.188		10.80	4.1161		1.0979
		5.125	0.219		12.51	4.7279		1.0716
		5.047	0.258	STD.	14.63	5.4500	40	1.0391
		5.001	0.281		15.87	5.8644		1.0204
		4.939	0.312		17.51	6.4074		.99647
		4.875	0.344		19.19	6.9358		.9696
		4.813	0.375	XHY	20.80	7.4300	80	.9449
		4.563	0.500		27.06	9.2534	120	.8495
		4.313	0.625		32.99	10.7976	160	.7590
4	4.5	4.260	0.120		5.62	1.7612	10	.7404
		4.188	0.156		7.24	2.2354		.7156
		4.124	0.188		8.67	2.6296		.6942
		4.094	0.203		9.32	2.8173		.6838
		4.062	0.219		10.02	3.0184		.6725
		4.026	0.237	STD.	10.80	3.2145	40	.6613
		4.000	0.250		11.36	3.3611		.6528
		3.938	0.281		12.67	3.7021	60	.6326
		3.876	0.312		13.97	4.0273		.6126
		3.826	0.337	XHY	15.00	4.2713	80	.5972
		3.624	0.438		19.02	5.1790	120	.5361
		3.438	0.531		22.53	5.8997	160	.4822
6	6.625	6.407	0.109		7.59	3.5769	5	1.6748
		6.357	0.134		9.30	4.3475	10	1.6488
		6.313	0.156		10.79	5.0107		1.6260
		6.249	0.188		12.94	5.9351		1.5937
		6.219	0.203		13.94	6.3804		1.5780
		6.187	0.219		15.00	6.8261		1.5620
		6.125	0.250		17.04	7.6905		1.5306
		6.065	0.280	STD.	18.99	8.4958	40	1.5008
		6.001	0.312		21.06	9.3416		1.4688
		5.937	0.344		23.10	10.111		1.4391
		5.875	0.375		25.05	10.893		1.4082
		5.761	0.432	XHY	28.60	12.224	80	1.3541
		5.625	0.500		32.74	13.711		1.2909
		5.501	0.562		36.43	14.9806	120	1.2346
		5.375	0.625		40.09	16.1821		1.1787
		5.187	0.719		45.39	17.8243	160	1.0977
		4.897	0.864	XXHY	53.21	20.025		.9784
		4.625	1.000		60.13	21.7719		.8727
		4.375	1.125		66.14	23.1237		.7809

Testing & Inspection of IS 1239 Pipes

Positive Material Identification – PMI Testing	Hydrostatic Test
Chemical Analysis – Spectro Analysis	Hydrogen-Induced Cracking (HIC) Test
Mechanical Testing Such as Tensile, Elongation, Reduction of Area	Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Micro Test	Radiography Test
Macro Test	Dye Penetrant Test (DP Test)
Hardness Test	Ultra Sonic Test (UT)
Pitting Resistance Test	Eddy Current Testing
Intergranular Corrosion (IGC) Test	Impact Test
Flaring Test	Bend Test
Flattening Test

Largest Carbon Steel IS 1239 Pipes Supplier in Istanbul, Turkey

Irfan Pipes and Tubes is one of the largest Carbon Steel IS 1239 Pipes suppliers in Istanbul, Turkey, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

IS 1239 Carbon Steel Pipes Exporter in Turkey, Carbon Steel IS 1239 Pipes Price List in Istanbul, IS 1239 Pipes Supplier in Bursa, Carbon Steel IS 1239 Pipes Exporter in Ankara, IS 1239 Carbon Steel Pipes Exporter in Bodrum, IS 1239 CS Pipes Size Chart, IS 1239 Carbon Steel Pipes Price in Antalya, IS 1239 Pipes Weight Chart, IS 1239 CS Pipes Thickness, IS 1239 Carbon Steel Pipes Supplier in İzmir, IS 1239 Pipes Stockist in Bursa

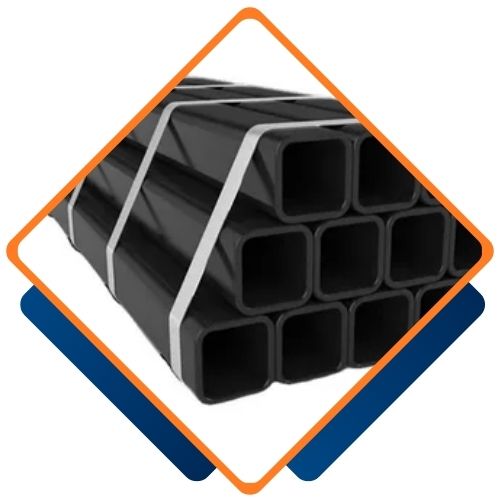

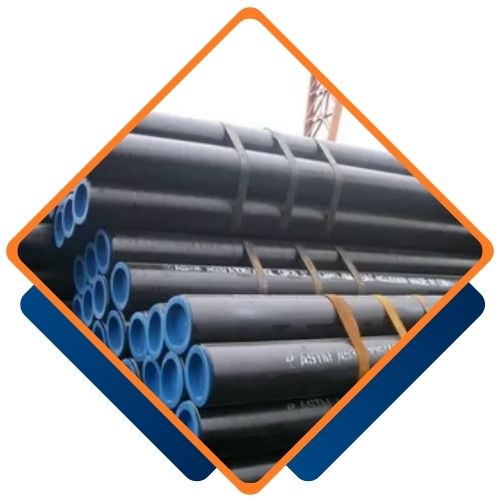

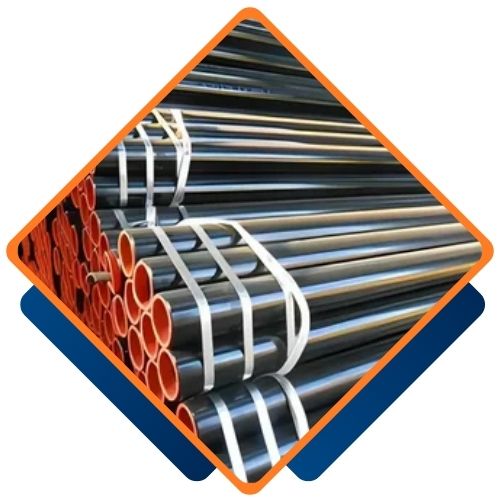

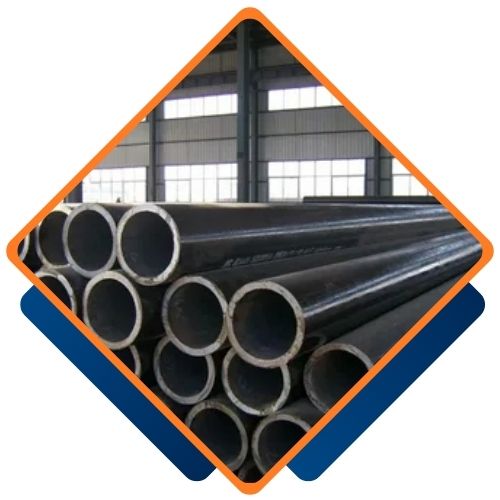

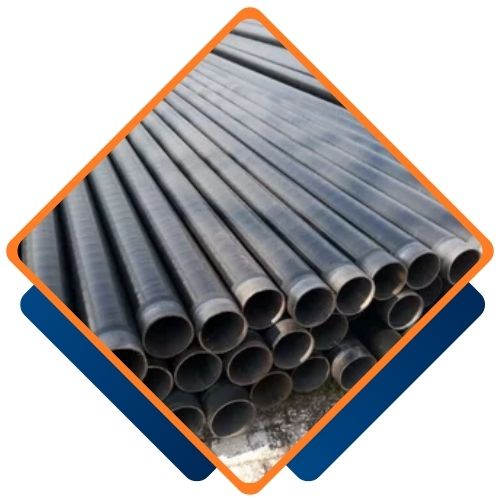

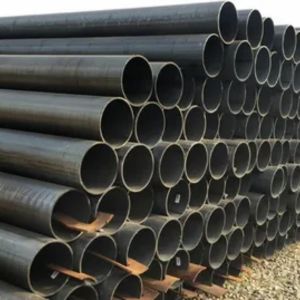

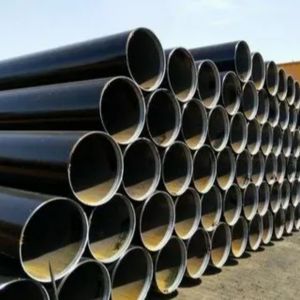

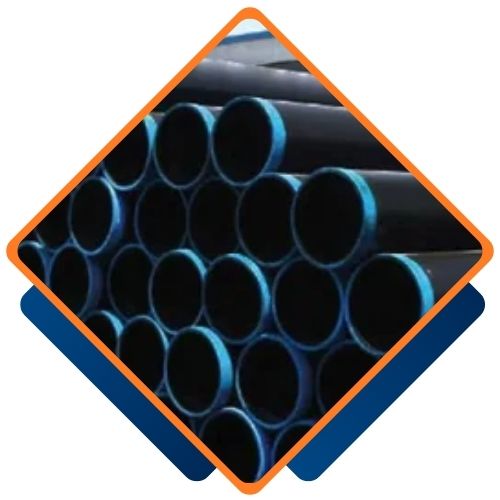

Types of Carbon Steel IS 1239 Pipes

Are Custom Sizes Available for Carbon Steel IS 1239 Pipes?

Yes, we offer custom sizes for Carbon Steel IS 1239 Pipes to meet your specific requirements. Our team at Irfan Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@irfanpipes.com.

IS 1239 CS Pipes Supplier in Istanbul, Carbon Steel IS 1239 Pipes Exporter in Bursa, IS 1239 CS Pipes Manufacturer in Ankara, IS 1239 Carbon Steel Pipes Price List in İzmir, CS IS 1239 Pipes Distributor in Bodrum, IS 1239 CS Pipes in Antalya, IS 1239 CS Pipes Supplier in Ankara, Carbon Steel IS 1239 Pipes Distributor in Turkey, IS 1239 Carbon Steel Pipes Sizes in mm

You’ll find Carbon Steel IS 1239 Pipes widely utilized in sectors that demand reliable, durable, and cost-effective piping systems. They play a crucial role in water supply networks, irrigation pipelines, and plumbing systems. In the construction realm, they serve as structural supports, scaffolding, and frameworks. The oil and gas industry often relies on them for low to medium-pressure pipelines. Additionally, they find applications in general engineering, industrial plants, and mechanical systems, providing long-term performance, strength, and resistance to wear and operational stress.
